Case Study

It’s a busy day in the Emergency Department where you work as an attending. The waiting room is packed when one of the nurses comes up to you and states, “We need you in Room 5, now! The patient doesn’t look good. Oh, and by the way, the blood pressure is 70/30 and her heart rate is 30 beats per minute. Here's her EKG.” The nurse hands you the following EKG. You walk into the room and are planning the team’s next steps.

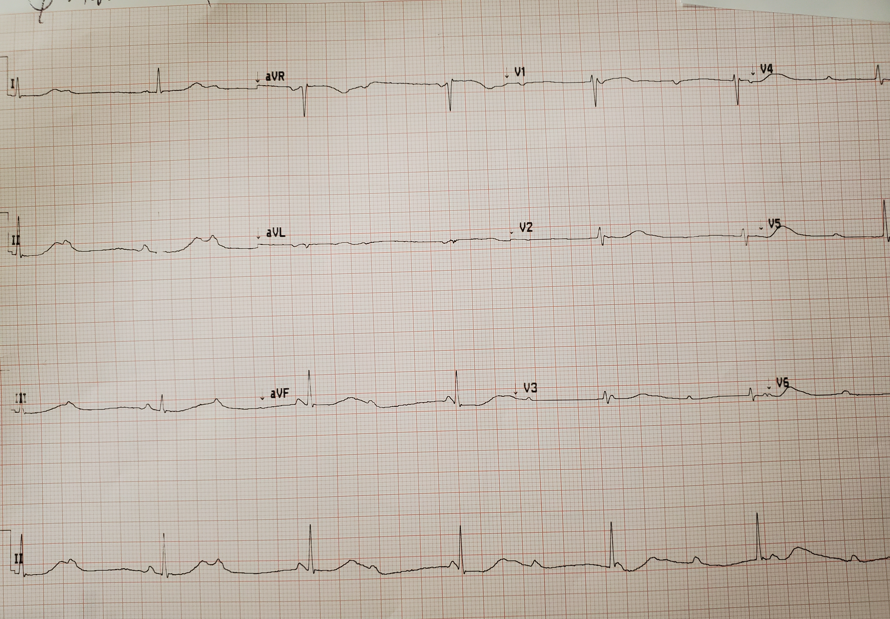

Figure 1. The EKG of the bradycardic and hypotensive patient. EKG courtesy of Navdeep Sekhon, Baylor College of Medicine.




Objectives

By the end of this module, the student will be able to:

  1. Identify the various subtypes of AV blocks

  2. Identify features of bundle branch blocks

  3. Recognize characteristics of WPW, prolonged QT and Brugada syndrome

  4. Be able to identify features of hypothermia on an EKG


Introduction

The electrical conduction system of the heart is instrumental for the heart to beat normally. This electrical system ensures that the atria and ventricles beat in an organized fashion that optimizes the heart’s ability to pump blood throughout the body. Abnormalities of the conduction system can cause dysrhythmias, heart blocks and even death.

Normal electrical conduction through the heart muscle takes a predicted pathway.  It travels from the Sinoatrial node (SA node) to the Atrioventricular node (AV node) to the Bundle of His and then onto the left and right bundle branches (usually in a left to right pattern), ultimately ending up in the Purkinje fibers.  Additionally, the Left Bundle has an anterior and posterior component called a fascicle. In normal cardiac electrophysiology, the electrical conduction occurs from left to right, essentially stimulating the left bundle and left ventricle first.

Figure 2. The electrical conduction system of the human heart. Courtesy of Wikimedia Commons and used under the Creative Commons License 3.0. Attribution: Madhero88, CC BY 3.0 <https://creativecommons.org/licenses/by/3.0>, via Wikimedia Commons. Location of original image: https://commons.wikimedia.org/wiki/File:Conductionsystemoftheheart.png





This chapter will discuss the syndromes that result in abnormal conduction at every step of the electrical pathway, the aberrations that are manifested in the ECG as a result, and the relevance of each abnormality in a clinical setting.  Abnormalities that manifest outside this conduction pathway, congenital and acquired, will also be captured in this chapter.


Initial Actions and Primary Survey

All unstable patients who present to the Emergency Department should have their ABC’s assessed and placed on a cardiac monitor. If there is concern for conduction abnormalities that may cause life-threatening dysrhythmias, defibrillator pads should be placed on the patient. Rapid performance of an EKG is instrumental to identifying the conduction abnormality and creating a therapeutic plan.

Below is  a bulleted list of initial actions to be taken for the patient with life-threatening conduction abnormalities:

  • ABC’s

  • Place patient on cardiac monitor

  • Place defibrillator pads on the patient

  • Obtain an EKG

  • Check laboratory studies:

    • Basic Metabolic Panel

    • Magnesium Level

    • Phosphorus Level

    • Cardiac markers


Conduction Abnormalities

Atrioventricular (AV) Blocks

Electricity travels from the SA node to the AV node as part of its initial electrical pathway.  The AV node is one of the first areas where conduction abnormalities can be detected on an ECG. AV nodal blocks can have an intrinsic delayed firing or a barrier to firing down the Purkinje system and as a result can cause bradycardias and hypoperfusion to vital organs. Cardiac ischemia, infarction, degenerative disease and infiltrative disease can all lead to AV nodal block.

First Degree Heart Block

One of the easier blocks to identify is a first degree AV block. In this block, intrinsic conduction through the AV node is delayed, which lengthens the time from atrial depolarization (p wave) to ventricular depolarization (QRS complex).  As a result, the distance between the two depolarizations (the PR interval) is prolonged. In a first degree block, the PR interval is greater than 200 msec (Figure 1). Typically these blocks are not clinically significant, and can be caused by a variety of conditions.  This rhythm is typically the least dangerous, requiring nothing more than routine follow up.

M3 Fig 1 Conduction Abnormalities -ecg-13

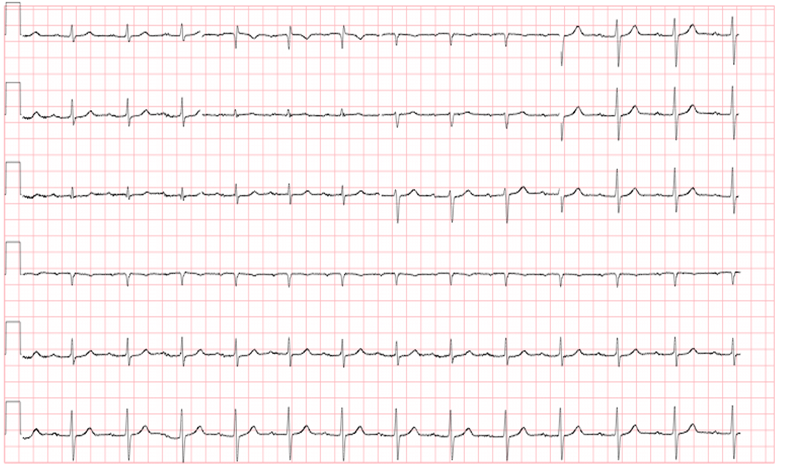

Figure 3. First degree AV block. Courtesy of Dr. Rahul Patwari, Rush University



Second Degree Heart Block

Second degree heart block includes two subtypes:  Mobitz type 1 (also known as Wenckebach) and Mobitz type 2.  The relationship between the P and the QRS are essential in differentiating between these blocks.

In Mobitz type 1, the PR interval progressively lengthens from beat to beat until the time of conduction is so great that the ventricle is unable to conduct, and there is a “dropped beat,” or absence of the QRS complex after the p wave (Figure 4).  Similar to first degree heart block, Mobitz type 1 block does not usually require an emergent intervention such as a pacemaker, although evaluation (medication history, blood testing, echocardiography) is usually performed to rule out reversible causes. Often causes are not found to be in the node itself, but in other contributing delayers of conduction.

M3 Fig 2 Conduction Abnormalities -ecg-22

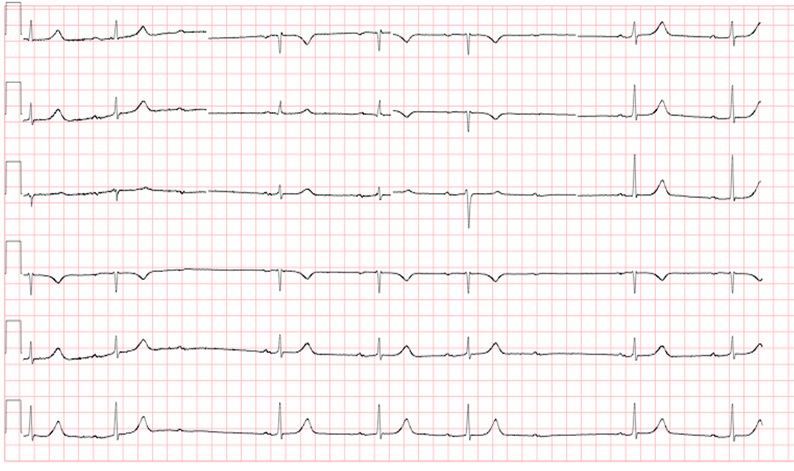

Figure 4. Mobitz Type I. Please note the increase of the PR segment interval in subsequent beats until there is a P wave with no associated QRS segment (“dropped beat”). Courtesy of Dr. Rahul Patwari, Rush University



Mobitz type 2 (Figure 5) is actually more dangerous, in that the electrical conduction is more episodic between the atria and the ventricle, and is more likely to be due something intrinsic within the myocardium itself.  It is usually due to a disturbance of the conduction system below the level of the AV node. Although the PR interval remains constant without progressive lengthening, there are intermittently dropped beats.  These may occur at regular intervals, or may be unpredictable.

The EKG findings in Mobitz type 2 are:

  • PR interval from beat to beat is constant

  • Occasional non-conducted beats

Structural issues of the myocardium are typically to blame for this phenomenon (i.e. cardiomyopathies, myocardial infarctions, myocarditis, etc).  This heart rhythm is essential to recognize as there is a high likelihood of progression to 3rd degree heart block. Patients who present to the Emergency Department with Mobitz type 2 typically need to be admitted to hospital and usually benefit from pacemaker placement.

M3 Fig 3 Conduction Abnormalities -ecg-31

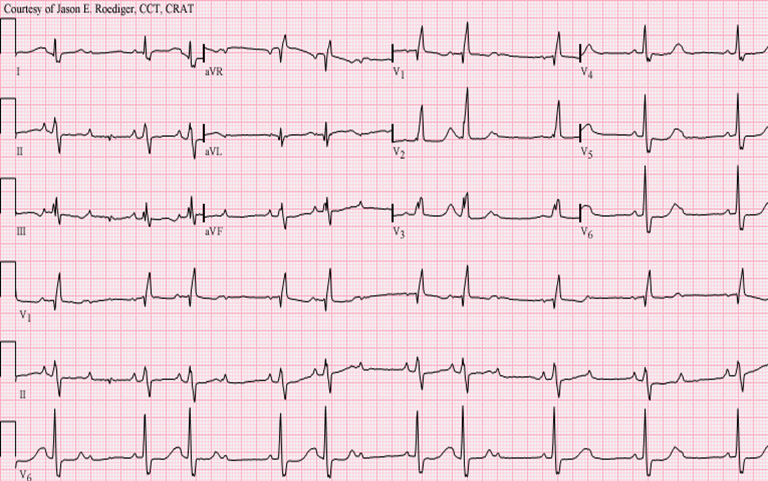

Figure 5. Mobitz Type II. Note that the PR interval is constant, and that there are intermittent dropped beats. Courtesy of user Jer5150 on wikimedia.org. Used under the Creative Commons Attribution-Share Alike 3.0 Unported license. Origianl image location: https://commons.wikimedia.org/wiki/File:Sinus_rhythm_with_3-to-2_and_2-to-1_Type_II_A-V_block.png

Third Degree Heart Block

In third degree heart block, the electrical depolarization of the atria and the ventricles occur independently of each other. This is recognized when the P waves and the QRS complexes “march through” the rhythm strip, each at their own independent rate, without regard to each other (Figure 6).  As can be seen in the figure, the P wave rate is 60 beats per minute (blue arrows) and the QRS rate is 37 beats per minute (black arrows). If you examine only a few beats on a 12 lead ECG, there may seem to be a relationship between the P waves and QRS complexes.  However, when observed over a longer strip, it is readily apparent that the atrial and ventricular rhythms are not associated with one another, but instead are firing (“marching through”) at separate rates, independently of one another.  This pattern almost invariably presents with the ventricular rate being slower than the atrial rate, and can lead to life-threatening bradycardia.

M3 Fig 4 Conduction Abnormalities -ecg-42

Figure 6. Third degree heart block. Courtesy of Dr. Rahul Patwari, Rush University



Both Mobitz 2 and third degree heart blocks usually require pacemaker placement.  This should be done on an emergent basis if the patient is significantly hypotensive, or if they are severely symptomatic at rest (e.g., pre-syncope, dyspnea, chest pain, etc).  Pacemaking ensures an adequate ventricular rate to maintain cardiac output to perfuse vital organs.

If the patient is having evidence of poor perfusion with a third degree heart block, it is appropriate to initiate pacing in the Emergency Department. It is important to note that atropine is not usually helpful in third degree heart block as the AV node will still be non functioning and will still prevent p waves from transmitting to the ventricles.

There are two main ways to pace patients in the Emergency Department:

  • Transcutaneous pacing

  • Transvenous pace

Transcutaneous pacing (Figure 7) is where pacing pads are placed on the patient’s torso, and the pacer applies small, periodic electrical shocks to pace the myocardium through the torso. In most Emergency Departments, the defibrillators also have a pacing function and can be used to pace transcutaneously. The benefit of transcutaneous pacing is that it can be done quickly, but some patients may not be able to tolerate the discomfort from the electrical shocks. A description of how to transcutaneously pace a patient is in the SAEM M3 Curriculum chapter: Circulation: Electricity (Circulation- Electricity (saem.org)).

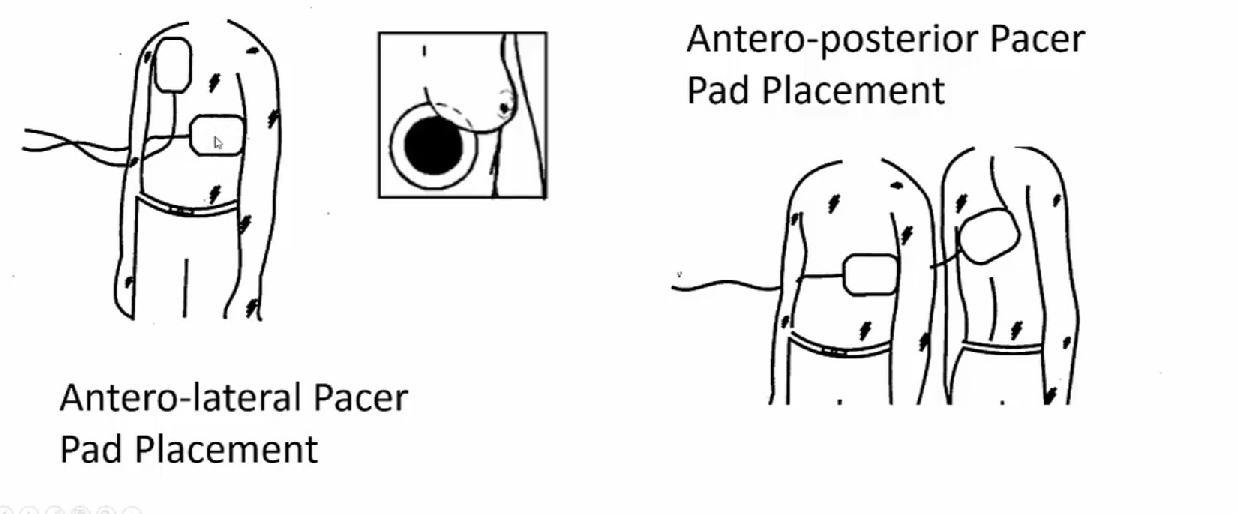

Figure 7. Pad Placement of a transcutaneous pacer. Image courtesy of www.downeastern.org and used under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. The original image is located at: https://www.downeastem.org/common-bedside-procedures-1



Transvenous pacing is a bit more invasive, as it involves floating a pacemaker through the Internal Jugular/Subclavian vein and into the Right Ventricle. Emergency Medicine Physicians are trained to perform this procedure. For further details on the procedure, you can look at the SAEM M3 Curriculum chapter, Circulation: Electricity (Circulation- Electricity (saem.org)) or at the following website: Transvenous Pacemaker — Taming the SRU.


Wide vs narrow QRS

Moving along down the electrical pathway, the AV node transmits its electrical signal to the bundle of His and the Purkinje system and is depicted by the QRS complex of the ECG. One of the most important issues to evaluate in looking at an ECG is the width of the QRS.  If the impulse is following the normal pathway described above, the resulting QRS should be normal or about 90 to 120 msec since there is no impedance of flow to the electrical activity.  A wider QRS indicates that conduction is occurring through an abnormal pathway.  The wider QRS is indicative of the delay in conduction as it takes longer for electrical activity to travel from myocyte to myocyte than through the electrical conduction system.  A wide QRS can be caused by bundle branch blocks, or the rhythm may be originating from below the atrium in either the ventricle or more proximally in the conduction pathway (Figure 8).

M3 Fig 6 Conduction Abnormalities -ecg-61

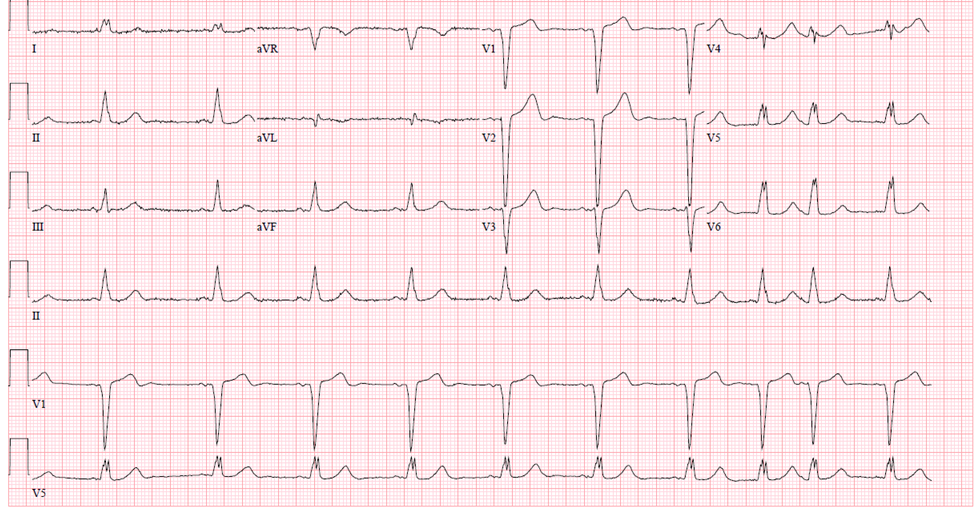

Figure 8. Wide complex QRS rhythm, Courtesy of Dr. Corey Heitz, Virginia Tech Carilion School of Medicine






Bundle Branch Blocks

Certain pathologies (e.g., MI, pulmonary HTN, digoxin toxicity, etc) can result in an interruption to any part of the electrical conducting system.  Clinically, bundle branch blocks are a delay in the conduction pathway and they can be helpful in determining the underlying etiology to a patients’ presenting complaint. The left and right bundle branches can each be affected, producing a recognizable pattern on the ECG which may help elucidate the etiology of a patient’s symptoms (eg., dyspnea, chest pain, presyncope).

When either bundle branch is blocked, the electrical impulse must travel directly from myocyte to myocyte, a much slower process than traveling through the normal low-resistance pathways.  As a result of this pathophysiology, the conduction time through the ventricles is prolonged, resulting in widening of the QRS complex (greater than 120 msec).

In a left bundle branch block (LBBB), the normal direction of activation is reversed, meaning that the right bundle branch is activated first, followed by the left bundle. This produces tall R waves in the lateral leads (I, aVL, V5, V6) and deep S waves in V1-V3 (Figure 9).

Figure 9. Left Bundle Branch Block. Courtesy of Life in the Fast Lane. Used under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. Original work located at: Left Bundle Branch Block (LBBB) • LITFL • ECG Library Diagnosis.



In a right bundle branch block (RBBB), the impulse direction remains normal, meaning that the left bundle is activated first, followed by the right bundle.  However, the impulse is delayed in reaching the right bundle.  As a result, an “R-prime” or secondary R wave is observed in the precordial leads (V1-V3), and the S wave is slurred in the lateral leads.  In the precordial leads, the appearance is often referred to as the “bunny ears”, indicating the RSR prime complex.  ST- depression and T wave inversions are also a common feature of RBBB in the right precordial leads (V1-V4) (Figure 10).

Figure 10. Right Bundle Branch Block. Image courtesy of Life in the Fast Line. Used under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. Original work located at: Right Bundle Branch Block (RBBB) • LITFL • ECG Library Diagnosis.





Left Bundle Branch Bock

  • QRS duration >0.12 seconds

  • Broad monomorphic R waves in the lateral leads

  • Broad dominant S wave in V1 and V2

Right Bundle Branch Block

  • QRS duration >0.12 seconds

  • Slurred S wave in the lateral leads (classical V6)

  • RSR’ (bunny ears) in V1 and V2 with R’ > R

Criteria for Left and Right Bundle Branch Block

Table 1. Left and Right Bundle Branch Blocks.


Congenital Conduction Disturbances

Wolff-Parkinson White

Certain accessory pathways can predispose to tachydysrhythmias. By definition, an accessory pathway allows for electrical conduction through the heart at sites other than the normal conduction system. This pathway circumvents the normal regulatory mechanisms that are in place when the SA and AV nodes fire.  The conduction system normally becomes refractory to new electrical stimuli for a period after firing an action potential.  Accessory pathways are not subject to this refractory period, potentiating and propagating tachydysrhythmias.

One well-known disease involving an accessory pathway is Wolff-Parkinson-White (WPW) Syndrome.  In WPW, the accessory pathway is called the Bundle of Kent.  The characteristic ECG feature of WPW is a delta wave (“slurring” of the upstroke of the QRS) and a shortened PR interval. This pathognomonic finding is the result of premature excitation of the cardiac myocytes (Figure 11).

EKG Findings of Wolff-Parkinson White

Shortened PR interval (PR <120ms)

Delta wave

QRS >100ms

Table 2. EKG findings of Wolff-Parkinson-White

M3 Fig 8 Conduction Abnormalities-ecg-82

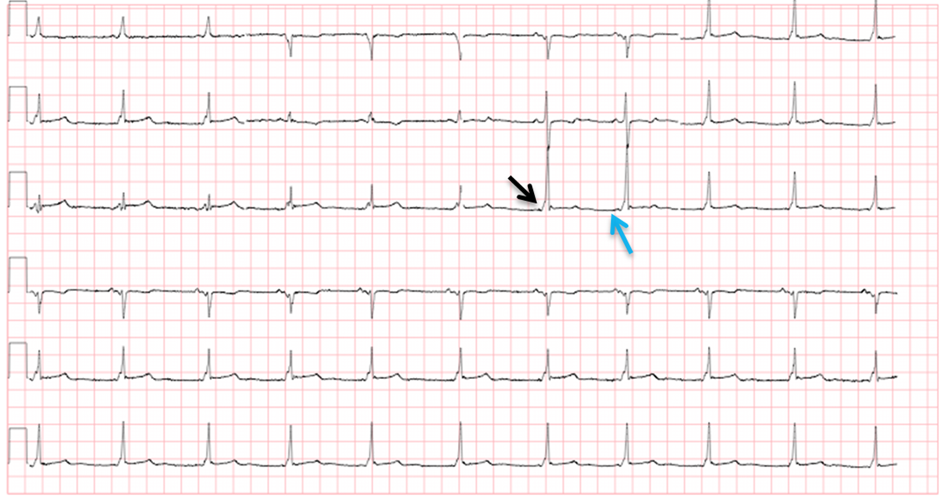

Figure 11. Wolff-Parkinson-White (WPW).  Arrows indicate delta waves (black arrow) and a shortened PR interval (blue arrow). Courtesy of Dr. Rahul Patwari, Rush University



The danger of WPW is that if a wide complex tachycardia develops, giving AV nodal blockers such as beta-blockers can precipitate ventricular fibrillation. In these situations medications such as procainamide can be given (17mg/kg).


Long QT Syndrome

Long QT syndrome is a congenital syndrome that can go undiagnosed for years. It is a conduction abnormality in ventricular repolarization that presents on an ECG as a prolonged QT. The QT interval must be corrected for heart rate, as faster heart rates will normally have a shorter QT interval than will slower heart rates.  The most common formula used for this purpose is Bazett’s Formula, which is the QT Interval divided by the square root of the RR interval (QTc=QT/√RR).

Normal QTc ranges between 330 to 440 msec. A QTc greater than 440 msec is considered prolonged. Prolongation of the QT interval greater than 500 msec is concerning as it can lead to cardiac dysrhythmias, namely Torsades de Pointes (Figure 12) that can ultimately decompensate to ventricular fibrillation.

M3 Fig 9 Conduction Abnormalities-ecg-9

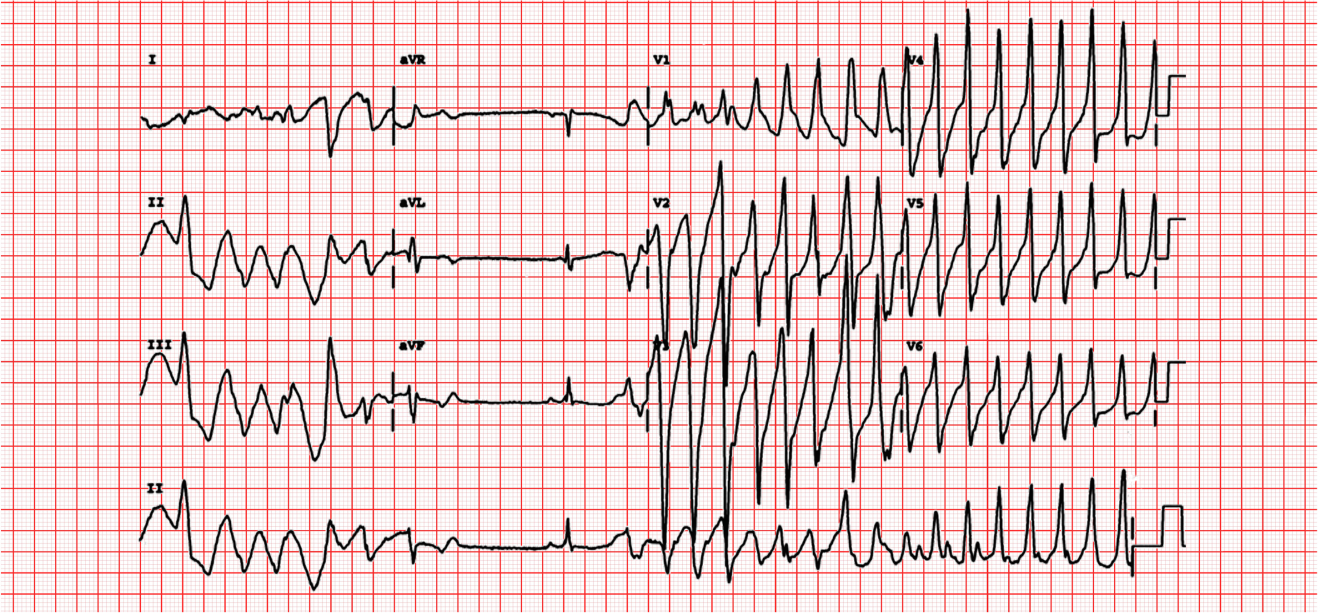

Figure 12. Torsades de Pointes. Courtesy of Michael Rosengarten BEng. MD McGillhttps://commons.wikimedia.org/wiki/File:112_(CardioNetworks_ECGpedia).jpg). Used under Creative Commons License.



Patients with Long QT syndrome can present with an array of symptoms including dizziness, presyncope, syncope, or cardiac arrest.  Many long QT patients are found incidentally on ECG, and are not symptomatic.  Medications can also be the inadvertent cause of QT lengthening on ECG. Symptomatic long QT syndrome can be fatal.  After initial stabilization, long QT syndrome can be treated with beta blockers.  Some patients will meet criteria for an implantable cardiac defibrillator for primary prevention given their risk of sudden cardiac death.  Specifically, patients that are at higher risk include those with a QTc above 500msec, cardiac events despite medical therapy and those with a history of cardiac arrest as a result of prolonged QT decompensated to fatal arrhythmia. Family members should also be encouraged to be screened for Long QT syndrome as it can be inherited.


Brugada Syndrome

Just as genetic anomalies may affect conduction pathways in the heart, there are genetic anomalies that affect the heart at the molecular level as well.  The Brugada syndrome is caused by defects in the sodium/calcium channels located on myocyte membranes.  These channelopathies predispose patients to ventricular tachycardia, ventricular fibrillation and sudden cardiac arrest.  Just like WPW, the ECG is also essential to the diagnosis for Brugada syndrome.

There are three types of Brugada syndrome, each distinguished by their particular precordial ECG findings. Type I is characterized by pronounced, coved ST segment elevation.  In Type II, the ST segment is elevated in a saddleback pattern. Type III is characterized by a more subtle ST segment elevation. (Figure 13)  These ECG findings are often detected in asymptomatic patients. However, in this case, asymptomatic does not mean “well.”  Their predisposition to fatal tachyarrhythmia remains and must be addressed. If their clinical presentation can be attributed to a finding of Brugada on ECG, i.e. syncope or an unstable cardiac rhythm, patient will require admission with cardiac monitoring and cardiac consultation for possible defibrillator implantation. Brugada syndrome found as in incidental finding in an otherwise stable and symptomatic patient can be discharge with prompt cardiology follow up. As there is a genetic predisposition to this syndrome, it is also important to advise that family members be screened as well.M3 Fig 10 Conduction Abnormalities -ecg-10

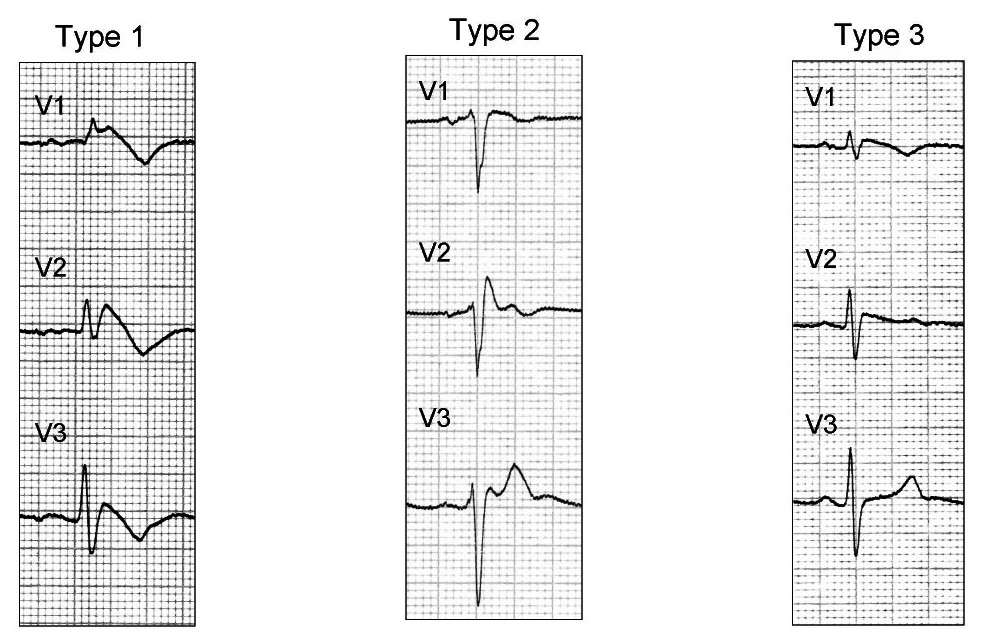

Figure 13. The three types of Brugada Syndrome. Image courtesy of Wikipedia Commons and used under the Creative Commons Attribution 2.0 Generic license.

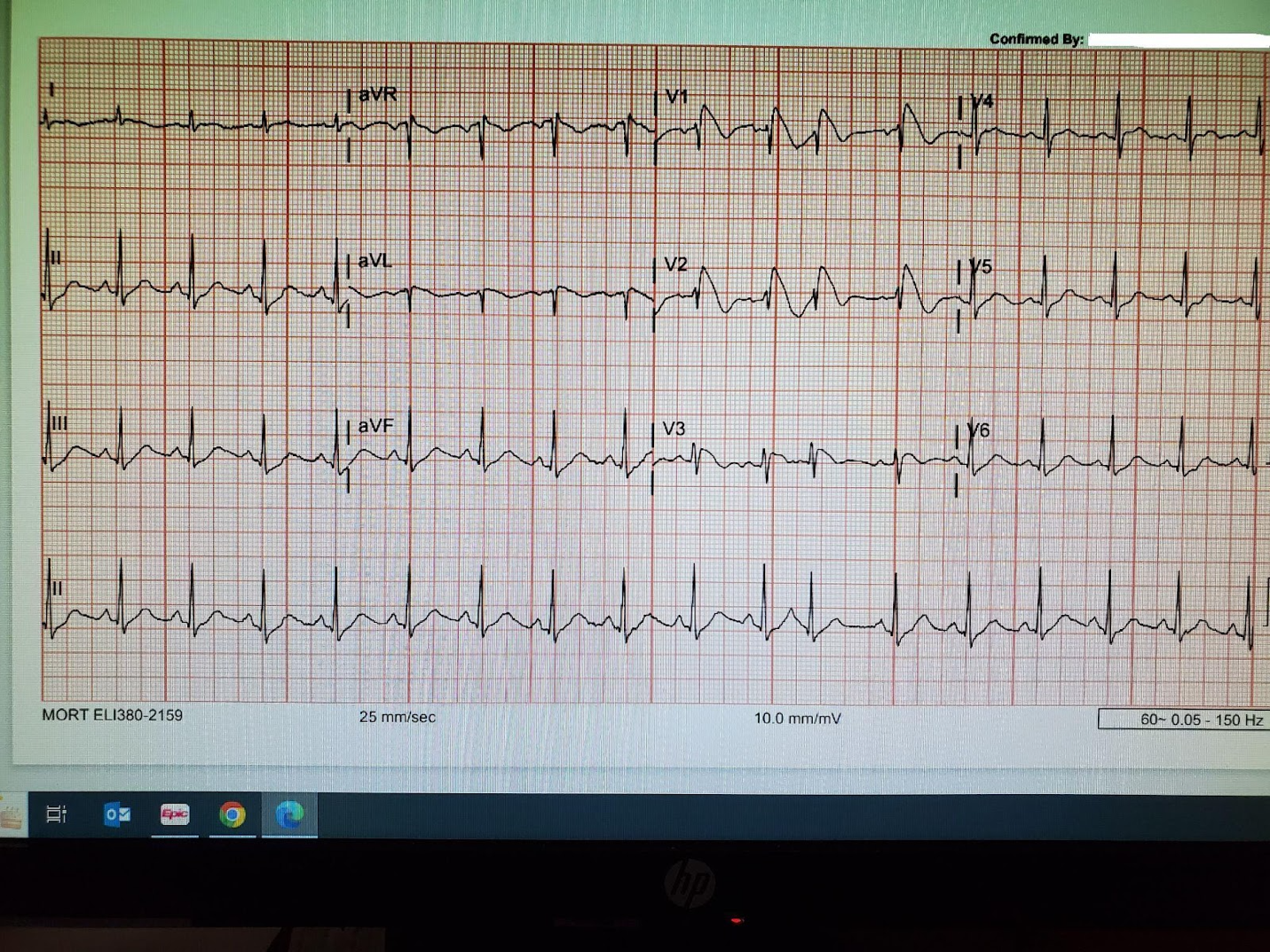

Figure 14. EKG of a patient with Brugada Syndrome. Image courtesy of Navdeep Sekhon, MD, Baylor College of Medicine.


Acquired Conduction Disturbances

Hypothermia

In hypothermia, cooling of the myocardium can increase the epicardial potassium current during ventricular repolarization.  This results in a positive deflection of the J point, predominantly in the precordial leads.  Oftentimes, the height of the deflection is proportional to the degree of hypothermia.  Keep in mind, however, that Osborne waves can also be seen as a normal variant, in brain injuries, i.e. subarachnoid hemorrhages, with certain medications, and as a result of hypercalcemia (Figure 15).

M3 Fig 11 Conduction Abnormalities -ecg-11

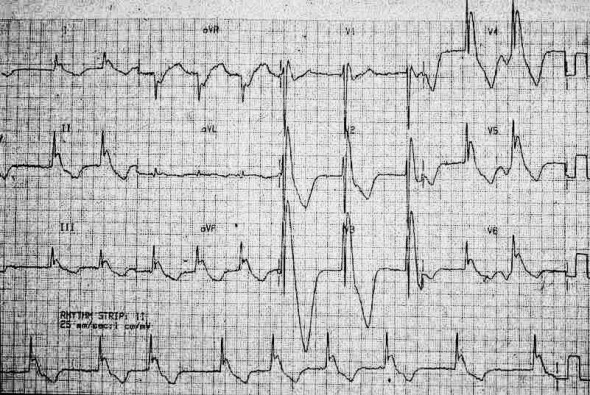

Figure 15. Osborne waves seen in moderate hypothermia (top image temp < 30 degrees C) and severe hypothermia (bottom image, temp < 27 degrees C). Courtesy of Dr. Mike Cadogan, lifeinthefastlane.com. Image used under the Creative Commons Attribution-NonCommerical-ShareAlike 4.0 International License. Original image located at: Osborn Wave (J Wave) • LITFL • ECG Library Basics




Case Resolution

Figure 15. The EKG of the hypotensive and bradycardic patient. Courtesy of Navdeep Sekhon, MD, Baylor College of Medicine.



You quickly recognize that this patient is hemodynamically unstable from a third degree heart block, as there is no association between the p-waves and the QRS waves. Transcutaneous pacing is initiated and the patient’s blood pressure and heart rate improves to 110/60 and 60 beats per minute. A transvenous pacer is later placed in the ER before admission to the Cardiac Care Unit. The patient is discharged from the hospital a few days later with a pacemaker implanted in her chest.


Pearls and Pitfalls

  • Patients in third degree heart block who are unstable hemodynamically need to be paced!

  • In patients with Wolff-Parkinson-White, do not use AV nodal blocking agents if they go into a wide complex tachycardia as it can precipitate ventricular fibrillation.
